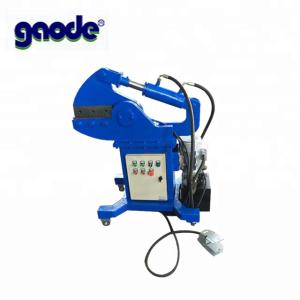

Automatic cut off machine for scrap iron
| No. | Specifications | | |
| 1 | Maximum Shear Capability | KN | 60 |
| 2 | Maximum Cutting Blade Opening | MM | 160 |
| 3
| Length of Cutting Blade | MM | 300 |
| 4 | Shearing times of per minutes | times/min | 15 |
| 5 | System Work Pressure | Mpa | 20Mpa |
| 6 | Motor | Model | Y100L2-4 |
| Power | 3KW | ||
| 7 | Oil pump | Model | G5-5 |
| displacement | 5.2ml/r |
Applications:
HC43 serises of hydraulic metal shears are applied in recycling companies,automobile
dismantling plants,smelting&casting industry to cold-shear section steel and
metallic structural parts into acceptable furnace sharges.
Features:
1,Adopting hydraulic drive,HC43 series feature simple operation&easy maintenance.It's
safe and realizable .
2,Shear force 9 grades from 63 to 500 tons;blade length 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm;
3, No footing bolts needed in installation;diesel engine can be equipped for power.
Types of HC43 metal shear
| Type | Max Shear Force (TON) | Max Holding Force ( TON) | Blde | Max Blade Opening | Shear Frequency | Material Size (MM) | Power (KW) | Operation |
| HC43-630 | 63 | 16 | 600 | 280 | 9-16 | 30X30 Ø 35 | 7.5 | Manual Freeding, manual or automatic operation |
| HC43-1000 | 100 | 16 | 600 | 280 | 9-16 | 40X40 Ø 45 | 11 | |
| HC43-1200 | 120 | 20 | 600 | 280 | 9-16 | 45X45 Ø 50 | 15 | |
| HC43-1600 | 160 | 25 | 700 | 320 | 9-16 | 55X55 Ø 63 | 18.5 | |
| HC43-2000 | 200 | 25 | 800 | 380 | 9-16 | 65X65 Ø 75 | 22 | |
| HC43-2500 | 250 | 26 | 1000 | 480 | 9-16 | 70X70 Ø 80 | 30 | |
| HC43-3150 | 315 | 42 | 1200 | 520 | 8-16 | 80X80 Ø 90 | 37 | |
| HC43-4000 | 400 | 42 | 1500 | 700 | 8-16 | 90X90 Ø 00 | 44 | |
| HC43-5000 | 500 | 42 | 1800 | 900 | 8-16 | 100X100 Ø 110 | 44 |
